GD14 - GN Dump 14,000 Lb w/6" Channel Frame
Part Description Weight
GD8014072 80" x 14' Tandem Axle Gooseneck Dump (with scissor lift)
GD8016072 80" x 16' Tandem Axle Gooseneck Dump (with scissor lift)
GD8310072 83" x 10' Tandem Axle Gooseneck Dump 4270.41
GD8312072 83" x 12' Tandem Axle Gooseneck Dump 4551.03
GD8314072 83" x 14' Tandem Axle Gooseneck Dump (with scissor lift) 4787.96
GD8316072 83" x 16' Tandem Axle Gooseneck Dump (with scissor lift) 5100.13
 Includes industry best warranty and (free) roadside assistance program.

Standard Features
Product Line Dump Trailers Product Series: GD14
GVWR: 14,000 lb GAWR: 7,000 Lb (ea axle)
Couplers: 2 5/16" Adjustable Coupler Round (20,000 lb) Safety Chains: 18,800 Lb 5/16 x 36 G#70
Jack: 1-10K Drop Leg Spring Return Axles: 2-7,000 Lb Cambered 1 Elec. Brake
Wheels: 16" 8-Hole White Spoke Tires: 235/80 R16 LRE
Suspension: Multi-Leaf Slipper Spring Tongue & Neck:
Frame: 6" Channel (8.2 lbs/ft) Bed Frame 2" x 6" Tubing
Side Rails: 10 Ga. 24" High Sides Crossmembers 5" Channel (6.7 lbs/ft)
Bed Crossmembers 3" Channel (3.5 lbs/ft) Flooring: 10 Ga. Smooth Plate
Fenders: Weld On Diamond Plate Lights: D.O.T. Stop, Tail, Turn and Clearance
Wire Harness: 16 Ga. 5-Way Double Insulated Harness Hydrulic Cylinder: 5" x 30" x 2"
Finishing Coat: Gloss Polyester Powder Coat Finish (prep): Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
Neck 10" I-Beam (12 lbs/ft) Gate 3-Way Spreader Gate
Hydrulic Power Units: Double Acting Power Unit Tarp: E-Z Lock Mesh Tarp System with Cover




Axle Options:
Code Axle
ES2 2 - 7,000 Lb Axles (2 Elec Brakes)
HS2 2 - 7,000 Lb Axles (2 Hyd Brakes)
Color Options:
Code Color
CB2 Black
CG3 Grey
CW4 White
CR5 Red
CB6 Blue
CG7 Green
CY8 Yellow



Additional Options:
Tire Upgrades
A05 ST235/80 R16 LRE 10 Ply. (standard)

A06 ST235/85 R16 LRG 14 Ply.

Couplers
C14 Gooseneck Coupler 2-5/16" Adjustable Rd. (standard)

C15 Gooseneck Coupler 2-5/16" Adjustable Sq.

King Pin
C50 King Pin Fifth-Wheel Adapter Adjustable Rd.

C51 King Pin Fifth-Wheel Adapter Adjustable Sq.
Gates & Ramps
G50 3 Way Gate (standard)

G51 5' Spreader Gate
H05 3 Way Gate w/Slide-IN Ramps 6' x 16" (dump)

Jacks
J04 Jack Spring Loaded Drop Leg 1-10K (standard)

J05 Jack Spring Loaded Drop Leg 2-10K

Lights
L01 Lighting Regular (standard)

L03 Lighting LED (optional)

D-Rings
M02 D-Rings 3" Weld On (2 additional)

M03 D-Rings 3" Weld On (4 additional)

M07 D-Rings 3" Weld On (6 additional)

M04 D-Rings 4" Recessed 360 Rotational Bolt On (4 each )

M05 D-Rings 4" Recessed 360 Rotational Bolt On (6 each )

M06 D-Rings 4" Recessed 360 Rotational Bolt On (8 each )

Raised Necks
N00 Standard Neck (standard)

N01 Raised Neck & Coupler 6"

N02 Raised Neck & Coupler 12"

Tool Box
T01 Front Mount Tool Box (standard)

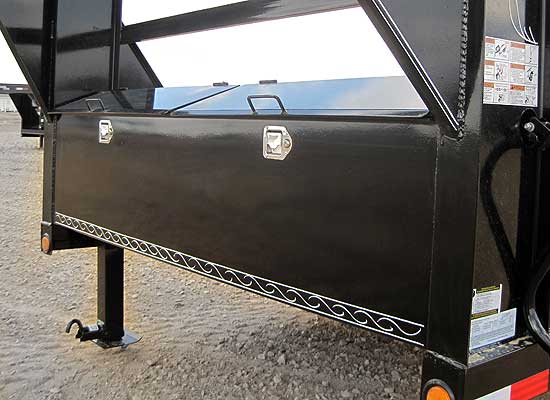

T05 Front Tool Box Full Width Between Risers

Hydrualics (dumps)

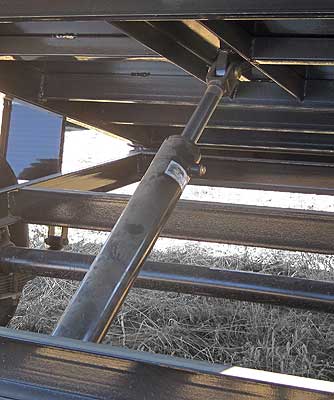

V00 Cylinder Package (standard) (standard)

V02 Scissor Hoist (upgrade)

Extensions
X01 Exp. Metal Extensions 24"

X02 Solid Metal Extensions 24"

Solar Panel Charger
SC1 Solar Panel Charger

Wireless Remote Control
RC1 Wireless Remote Double Acting Dump Control

Rear Support Jacks
RS2 Rear Support Stands (Tube)

Road Service Program
RSP Road Service Program 903-783-3933 for Info. (standard)
